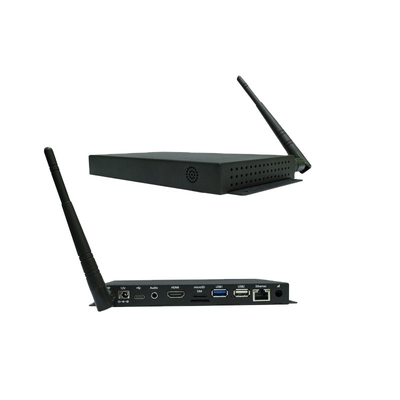

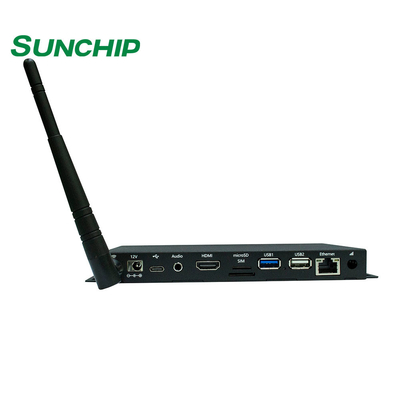

RK3288 Android Media Player BOX
Sunchip-RK3288 High-Performance Platform
Sunchip-RK3288 is an all-in-one high-performance multi-core computing platform.
It features powerful graphics processing and video decoding ability,
and support for Android 7-10 OS.
It will become extra ordinary with your creativity.
Quad-Core High-Performance Board
Uses RK3288 quad-core Cortex-A17processor, supports 4K hardware decoding, has a rich expansion interface, as well as compatible with mainstream displays. It adopts the immersion gold process and has passed various pressure tests, which can be applied to the product directly.
RK3288 development board is an all-in-one high performance multi-core computing platform. Based on the Rockchip RK3288 SoC featuring an Arm Cortex-A17 (MP4) and Arm Mali-T760 (MP4), it features powerful graphics processing and video decoding ability, and support for Android OS.
High-performance Core Configuration
with RK3288 quad-core Cortex-A17 processor, frequency up to 1.8GHz, integrated quad-core Mali-T764 GPU. Its excellent performance makes products more possibilities.
Powerful Hardware Decoding Capability
It supports LVDS/EDP/ HD-MI display interfaces, 4K hardware decoding, dual-screen identical display/dual-screen differential display, and can drive the mainstream 5~100-inch display directly.
Running cloud-based digital signage software
The cost-effective, scalable and easy to use software is an excellent choice for businesses of any size and in any vertical. Users can login from any computer or a mobile device and create or update their content or campaign within minutes.
Digital signage player comes with 1-year warranty
Designed to run 24/7
Ideal for any digital signage application
|
Hardware Spec
|
|
System
|
CPU&GPU
|
RK3288 Quad-core Cortex-A17 @1.8G GPU Mali T764
|
|
RAM
|
2GB/4GB (optional, default 2GB)
|
|
Memory
|
16GB/32GB(optional, default 16GB)
|
|
Operating system
|
Android 6.0-10.0
|
|
Network
|
WiFi
|
802.11b/g/n(2.4G/5G optional, default 2.4G)
|
|
Mobile network
|
Support full Netcom 4G (optional)
|
|
Bluetooth
|
Bluetooth 5.2
|
|
Ethernet
|
10M/100 M Ethernet
|
|
Language
|
Multi-Language support
|
|
Interface
|
USB interface
|
Support USB 2.0 host*2
|
|
Micro USB
|
USB_Debug interface*1
|
|
DC
|
DC power 12V input
|
|
SD card
|
Maximum support 64GB
|
|
HDMI
|
Support HDMI output Support 4K 60FPS frame rate
|
|
Screen interface
|
EDP screen interface / LVDS screen interface(optional)
|
|
Speaker output
|
8Ω*5W * 2(optional)
|
|
UART
|
UART2*1(optional)
|
|
infrared remote control
|
Support infrared remote control
|
|
USB port expantion
|
USB port expandert*1(optional)
|
|
RJ45
|
10/100M Ethernet port
|
|
Headset
|
3.5mm stereo headphone output
|
|
Media Playback
|
Video format
|
MPEG-1,MPEG-2,MPEG-4,H.263,H.264,H.265,VC1,VP8,RV etc.,support up to 3840x2160
|
|
Audio format
|
MP3,WMA,WAV, APE, FLAC, OGG,M4A,3GPP format
|
|
Text processing
|
EPUB, WORD, EXCEL, POWERPOINT, PDF
|
|
Ebook
|
PDF,TXT,CHM,DOC,EXCEL,EPUB,RTF,FB2
|
|
Image Format
|
JPG,BMP,PNG
|
|
System Management
|
APK install
|
APK installer
|
|
Root permission
|
Original Android system, open root permissions, product customization development
|
|
Remote control
|
Real-time remote monitoring, 7*24 hours unattended
|
|
OTA upgrade
|
Support OTA remote upgrade
|
|
Accessories
|
Adapter
|
12V/3A
|
|
User's Guide
|
E-user manual
|
|
Warranty Card
|
Standard
|
|
Product size(L*W*H)
|
195*100*20
|
|
colour box size(L*W*H)
|
colour box size(L*W*H)
|
|
Carton size(PCS/CTN)(L*W*H)
|
350*350*203mm / 5PCS/CTN
|
1.Packing: carton box or wood case
2.Payment methods: accept T/T,Western Union,Paypal and Cash.
3.RMA Policy: customer bear all the freight and duty charge to factory,and the factory afford return freight charge.
4.Warranty: 12 months warranty. Paid maintenance over 12 months.
5.Remark: ROHS, CE & FCC certificates in e-file format are available.
6.MOQ: 1pc, sample order are welcome for your evaluation.
About Sunchip :
SUNCHIP is an OEM / ODM factory, customizing products to tailor your needs is our strength and mission, over 130 employees’ team that including over 70 research and development engineers, who can provide services and solutions in electronic Android mainboard design for digital signage industries and domains as it is becoming a critical function in the product development life cycle, diverse categories of embedded systems such as industrial automation, consumer electronics, embedded digital signage devices and exhibition display screen.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
Sunchip is a national high-tech enterprise with various patents. Our factory runs under the ISO 9001 & ISO 14001 certification. Our products fully completely with CE, RoHS and FCC certifications.
Sunchip has become the ODM / OEM partner of a number of world-class companies. Our products have been exported to over eighty worldwide countries.We do the best we can consistently to provide excellent quality products and one-stop services for all customers.
We are looking forward to cooperating, developing and growing with you sincerely.
[you can also tell us your requirements, so that we advise you a matched solution]
1) Q: Is SUNCHIP a factory or simply a trading company?
A: We are a TRUE OEM/ODM factory. Please read our COMPANY PROFILE, for more information on this issue.
2) Q: What payment methods are available to me?
A: We accept most of the payment methods: accept VISA, Pay Later,T/T,Western Union,Paypal and Cash.
3) Q: How long is the warranty time?
A: 1 Year.
4) Q: What are the shipment terms and delivery times of your company?
A: Delivery / production time is directly affected by the size of the order. Also depending in which season you are shipping.
5) Q: Do you give any discounts ? A: Prices are directly affected by the quantity. We have many ways to help our partners when starting the sample processes. Make sure to ask our sales on how we can make you save some charges.
6) Q: I would like to add my company logo on your products, is this possible?
A: SURE.We customize on a regular basis products for many large retaillers and brands. If your order is at the below 10 units, we can consider this as a SAMPLE order, some fees might apply for the logo prints.Different methodes are used for logos, please ask our sales for more information on this issue, we will surely find the right solution for you.
